Haskell - part 4

Declaring types and classes, the countdown problem, and lazy evaluationMaterial adapted from Erik Meijer’s Functional ProgrammingA Jupyter notebook version of this material is available online in Google Colab. Although Colab does not support Haskell, the notebook can be downloaded and run in Jupyter Notebook, if the IHaskell extension is installed.

Declaring types and classes

Type declarations

In Haskell, a new name for an existing type can be defined using a type declaration.

type String = [Char]

String is a synonym for the type [Char].

type String = [Char]

Type declarations can be used to make other types easier to read. For example, given

type Pos = (Int,Int)

we can define:

origin    :: Pos
origin     = (0,0)

left      :: Pos → Pos
left (x,y) = (x-1,y)

type Pos = (Int,Int)

origin    :: Pos
origin     = (0,0)

left      :: Pos -> Pos
left (x,y) = (x-1,y)

Like function definitions, type declarations can also have parameters. For example, given

type Pair a = (a,a)

we can define:

mult      :: Pair Int → Int
mult (m,n) = m*n

copy      :: a → Pair a
copy x     = (x,x)

type Pair a = (a,a)

mult      :: Pair Int -> Int
mult (m,n) = m*n

copy      :: a -> Pair a
copy x     = (x,x)

Type declarations can be nested:

-- OK
type Pos   = (Int,Int)

type Trans = Pos → Pos

However, they cannot be recursive:

-- Not OK
type Tree = (Int,[Tree])

-- OK
type Pos   = (Int,Int)

type Trans = Pos -> Pos

-- Not OK
type Tree = (Int,[Tree])

Data declarations

A completely new type can be defined by specifying its values using a data declaration.

data Bool = False | True

Bool is a new type, with two new values False and True.

data Bool = False | True

Note:

• The two values False and True are called the constructors for the type Bool.
• Type and constructor names must begin with an upper-case letter.
• Data declarations are similar to context free grammars. The former specifies the values of a type, the latter the sentences of a language.

Values of new types can be used in the same ways as those of built in types. For example, given

data Answer = Yes | No | Unknown

we can define:

answers     :: [Answer]
answers      = [Yes,No,Unknown]

flip        :: Answer → Answer
flip Yes     = No
flip No      = Yes
flip Unknown = Unknown

data Answer = Yes | No | Unknown

answers     :: [Answer]
answers      = [Yes,No,Unknown]

flip        :: Answer -> Answer
flip Yes     = No
flip No      = Yes
flip Unknown = Unknown

The constructors in a data declaration can also have parameters. For example, given

data Shape = Circle Float
           | Rect Float Float

we can define:

square         :: Float → Shape
square n        = Rect n n

area           :: Shape → Float
area (Circle r) = pi * r^2
area (Rect x y) = x * y

data Shape = Circle Float
           | Rect Float Float

square         :: Float -> Shape
square n        = Rect n n

area           :: Shape -> Float
area (Circle r) = pi * r^2
area (Rect x y) = x * y

Note:

• Shape has values of the form Circle r where r is a float, and Rect x y where x and y are floats.
• Circle and Rect can be viewed as functions that construct values of type Shape:

Circle :: Float → Shape

Rect   :: Float → Float → Shape

Circle :: Float -> Shape

Rect   :: Float -> Float -> Shape

Not surprisingly, data declarations themselves can also have parameters. For example, given

data Maybe a = Nothing | Just a

we can define:

safediv    :: Int → Int → Maybe Int
safediv _ 0 = Nothing
safediv m n = Just (m `div` n)

safehead   :: [a] → Maybe a
safehead [] = Nothing
safehead xs = Just (head xs)

data Maybe a = Nothing | Just a

safediv    :: Int -> Int -> Maybe Int
safediv _ 0 = Nothing
safediv m n = Just (m `div` n)

safehead   :: [a] -> Maybe a
safehead [] = Nothing
safehead xs = Just (head xs)

Recursive types

In Haskell, new types can be declared in terms of themselves. That is, types can be recursive.

data Nat = Zero | Succ Nat

Nat is a new type, with constructors Zero :: Nat and Succ :: Nat → Nat.

data Nat = Zero | Succ Nat

Note:

• A value of type Nat is either Zero, or of the form Succ n where n :: Nat. That is, Nat contains the following infinite sequence of values:

Zero
Succ Zero
Succ (Succ Zero)
•
•
•

• We can think of values of type Nat as natural numbers, where Zero represents 0, and Succ represents the successor function 1+.

• For example, the value

Succ (Succ (Succ Zero))

represents the natural number 1 + (1 + (1 + 0)) = 3.

Using recursion, it is easy to define functions that convert between values of type Nat and Int:

nat2int         :: Nat → Int
nat2int Zero     = 0
nat2int (Succ n) = 1 + nat2int n

int2nat  :: Int → Nat
int2nat 0 = Zero
int2nat n = Succ (int2nat (n-1))

nat2int         :: Nat -> Int
nat2int Zero     = 0
nat2int (Succ n) = 1 + nat2int n

int2nat  :: Int -> Nat
int2nat 0 = Zero
int2nat n = Succ (int2nat (n-1))

Two naturals can be added by converting them to integers, adding, and then converting back:

add    :: Nat → Nat → Nat
add m n = int2nat (nat2int m + nat2int n)

However, using recursion the function add can be defined without the need for conversions:

add Zero     n = n
add (Succ m) n = Succ (add m n)

add    :: Nat -> Nat -> Nat
add m n = int2nat (nat2int m + nat2int n)

add Zero     n = n
add (Succ m) n = Succ (add m n)

For example:

add (Succ (Succ Zero)) (Succ Zero)
= Succ (add (Succ Zero) (Succ Zero))
= Succ (Succ (add Zero (Succ Zero))
= Succ (Succ (Succ Zero))

Note:

• The recursive definition for add corresponds to the laws 0+n = n and (1+m)+n = 1+(m+n).

Arithmetic expressions

Consider a simple form of expressions built up from integers using addition and multiplication, as shown in Figure 1.

⊕
Figure 1. The syntax tree for the arithmetic expression 1 + 2 * 3.

Using recursion, a suitable new type to represent such expressions can be declared by:

data Expr = Val Int
          | Add Expr Expr
          | Mul Expr Expr

For example, the expression on the previous slide would be represented as follows:

Add (Val 1) (Mul (Val 2) (Val 3))

Using recursion, it is now easy to define functions that process expressions. For example:

size          :: Expr → Int
size (Val n)   = 1
size (Add x y) = size x + size y
size (Mul x y) = size x + size y

eval          :: Expr → Int
eval (Val n)   = n
eval (Add x y) = eval x + eval y
eval (Mul x y) = eval x * eval y

size          :: Expr -> Int
size (Val n)   = 1
size (Add x y) = size x + size y
size (Mul x y) = size x + size y

eval          :: Expr -> Int
eval (Val n)   = n
eval (Add x y) = eval x + eval y
eval (Mul x y) = eval x * eval y

Note:

• The three constructors have types:

Val :: Int → Expr
Add :: Expr → Expr → Expr
Mul :: Expr → Expr → Expr

• Many functions on expressions can be defined by replacing the constructors by other functions using a suitable fold function. For example:

eval = fold id (+) (*)

Val :: Int -> Expr
Add :: Expr -> Expr -> Expr
Mul :: Expr -> Expr -> Expr

eval = fold id (+) (*)

Binary trees

In computing, it is often useful to store data in a two-way branching structure or binary tree, as shown in Figure 2.

⊕
Figure 2. Binary trees are useful in computing to store data.

Using recursion, a suitable new type to represent such binary trees can be declared by:

data Tree = Leaf Int
          | Node Tree Int Tree

For example, the tree on the previous slide would be represented as follows:

Node (Node (Leaf 1) 3 (Leaf 4))
     5
     (Node (Leaf 6) 7 (Leaf 9))

data Tree = Leaf Int
          | Node Tree Int Tree

Node (Node (Leaf 1) 3 (Leaf 4))
     5
     (Node (Leaf 6) 7 (Leaf 9))

We can now define a function that decides if a given integer occurs in a binary tree:

occurs               :: Int → Tree → Bool
occurs m (Leaf n)     = m==n
occurs m (Node l n r) = m==n
                        || occurs m l
                        || occurs m r

But… in the worst case, when the integer does not occur, this function traverses the entire tree.

occurs               :: Int -> Tree -> Bool
occurs m (Leaf n)     = m==n
occurs m (Node l n r) = m==n
                        || occurs m l
                        || occurs m r

Now consider the function flatten that returns the list of all the integers contained in a tree:

flatten             :: Tree → [Int]
flatten (Leaf n)     = [n]
flatten (Node l n r) = flatten l
                       ++ [n]
                       ++ flatten r

A tree is a search tree if it flattens to a list that is ordered. Our example tree is a search tree, as it flattens to the ordered list [1,3,4,5,6,7,9].

flatten             :: Tree -> [Int]
flatten (Leaf n)     = [n]
flatten (Node l n r) = flatten l
                       ++ [n]
                       ++ flatten r

Search trees have the important property that when trying to find a value in a tree we can always decide which of the two sub-trees it may occur in:

occurs m (Leaf n)            = m==n
occurs m (Node l n r) | m==n = True
                      | m<n  = occurs m l
                      | m>n  = occurs m r

This new definition is more efficient, because it only traverses one path down the tree.

occurs m (Leaf n)            = m==n
occurs m (Node l n r) | m==n = True
                      | m<n  = occurs m l
                      | m>n  = occurs m r

Exercises

1. Using recursion and the function add, define a function that multiplies two natural numbers.
2. Define a suitable function fold for expressions, and give a few examples of its use.
3. A binary tree is complete if the two sub-trees of every node are of equal size. Define a function that decides if a binary tree is complete.

The countdown problem

What is countdown?

• A popular quiz program on British television that has been running since 1982.
• Based upon an original French version called “Des Chiffres et Des Lettres”.
• Includes a numbers game that we shall refer to as the countdown problem.

Example

Using the numbers

1     3    7     10    25     50

and the arithmetic operators

+     -    *     ÷

construct an expression whose value is 765.

Rules

• All the numbers, including intermediate results, must be positive naturals, (1,2,3,…).
• Each of the source numbers can be used at most once when constructing the expression.
• We abstract from other rules that are adopted on television for pragmatic reasons.

For our example, one possible solution is

(25-10) * (50+1) = 765

Notes:

• There are 780 solutions for this example.
• Changing the target number to 831 gives an example that has no solutions.

Evaluating expressions

Operators:

data Op = Add | Sub | Mul | Div

Apply an operator:

apply         :: Op → Int → Int → Int
apply Add x y  = x + y
apply Sub x y  = x - y
apply Mul x y  = x * y
apply Div x y  = x `div` y

data Op = Add | Sub | Mul | Div

apply         :: Op -> Int -> Int -> Int
apply Add x y  = x + y
apply Sub x y  = x - y
apply Mul x y  = x * y
apply Div x y  = x `div` y

Decide if the result of applying an operator to two positive natural numbers is another such:

valid         :: Op → Int → Int → Bool
valid Add _ _  = True
valid Sub x y  = x > y
valid Mul _ _  = True
valid Div x y  = x `mod` y == 0

Expressions:

data Expr = Val Int | App Op Expr Expr

valid         :: Op -> Int -> Int -> Bool
valid Add _ _  = True
valid Sub x y  = x > y
valid Mul _ _  = True
valid Div x y  = x `mod` y == 0

data Expr = Val Int | App Op Expr Expr

Return the overall value of an expression, provided that it is a positive natural number:

eval                :: Expr → [Int]
eval (Val n)      = [n | n > 0]
eval (App o l r) = [apply o x y | x ← eval l
                                , y  ← eval r
                                , valid o x y]

Either succeeds and returns a singleton list, or fails and returns the empty list.

eval                :: Expr -> [Int]
eval (Val n)      = [n | n > 0]
eval (App o l r) = [apply o x y | x <- eval l
                                , y  <- eval r
                                , valid o x y]

Formalising the problem

Return a list of all possible ways of choosing zero or more elements from a list:

choices :: [a] → [[a]]

For example:

> choices [1,2]
[[],[1],[2],[1,2],[2,1]]

choices :: [a] -> [[a]]

choices [1,2]

Return a list of all the values in an expression:

values            :: Expr → [Int]
values (Val n)     = [n]
values (App _ l r) = values l ++ values r

Decide if an expression is a solution for a given list of source numbers and a target number:

solution       :: Expr → [Int] → Int → Bool
solution e ns n = elem (values e) (choices ns)
                  && eval e == [n]

values            :: Expr -> [Int]
values (Val n)     = [n]
values (App _ l r) = values l ++ values r

solution       :: Expr -> [Int] -> Int -> Bool
solution e ns n = elem (values e) (choices ns)
                  && eval e == [n]

Brute force solution

Return a list of all possible ways of splitting a list into two non-empty parts:

split :: [a] → [([a],[a])]

For example:

> split [1,2,3,4]
[([1],[2,3,4]),([1,2],[3,4]),([1,2,3],[4])]

split :: [a] -> [([a],[a])]

split [1,2,3,4]

Return a list of all possible expressions whose values are precisely a given list of numbers:

exprs    :: [Int] → [Expr]
exprs []  = []
exprs [n] = [Val n]
exprs ns  = [e | (ls,rs) ← split ns
               , l       ← exprs ls
               , r       ← exprs rs
               , e       ← combine l r]

The key function in this lecture.

exprs    :: [Int] <- [Expr]
exprs []  = []
exprs [n] = [Val n]
exprs ns  = [e | (ls,rs) <- split ns
               , l       <- exprs ls
               , r       <- exprs rs
               , e       <- combine l r]

Combine two expressions using each operator:

combine    :: Expr → Expr → [Expr]
combine l r =
    [App o l r | o ← [Add,Sub,Mul,Div]]

Return a list of all possible expressions that solve an instance of the countdown problem:

solutions     :: [Int] → Int → [Expr]
solutions ns n = [e | ns' ← choices ns
                    , e   ← exprs ns
                    , eval e == [n]]

combine    :: Expr -> Expr -> [Expr]
combine l r =
    [App o l r | o <- [Add,Sub,Mul,Div]]

solutions     :: [Int] -> Int -> [Expr]
solutions ns n = [e | ns' <- choices ns
                    , e   <- exprs ns
                    , eval e == [n]]

How fast is it?

System: 1.2GHz Pentium M laptop

Compiler: GHC version 6.4.1

Example: solutions [1,3,7,10,25,50] 765

One solution: 0.36 seconds

All solutions: 43.98 seconds

Can we do better?

• Many of the expressions that are considered will typically be invalid - fail to evaluate.
• For our example, only around 5 million of the 33 million possible expressions are valid.
• Combining generation with evaluation would allow earlier rejection of invalid expressions.

Fusing two functions

Valid expressions and their values:

type Result = (Expr,Int)

We seek to define a function that fuses together the generation and evaluation of expressions:

results   :: [Int] → [Result]
results ns = [(e,n) | e ← exprs ns
                    , n ← eval e]

type Result = (Expr,Int)

results   :: [Int] -> [Result]
results ns = [(e,n) | e <- exprs ns
                    , n <- eval e]

This behaviour is achieved by defining

results []  = []
results [n] = [(Val n,n) | n > 0]
results ns  =
    [res | (ls,rs) ← split ns
         , lx      ← results ls
         , ry      ← results rs
         , res     ← combine' lx ry]

where

combine' :: Result → Result → [Result]

results []  = []
results [n] = [(Val n,n) | n > 0]
results ns  =
    [res | (ls,rs) <- split ns
         , lx      <- results ls
         , ry      <- results rs
         , res     <- combine' lx ry]

combine' :: Result -> Result -> [Result]

Combining results:

combine’ (l,x) (r,y) =
    [(App o l r, apply o x y)
        | o ← [Add,Sub,Mul,Div]
        , valid o x y]

New function that solves countdown problems:

solutions'     :: [Int] → Int → [Expr]
solutions' ns n =
    [e | ns'   ← choices ns
       , (e,m) ← results ns'
       , m == n]

combine' (l,x) (r,y) =
    [(App o l r, apply o x y)
        | o <- [Add,Sub,Mul,Div]
        , valid o x y]

solutions'     :: [Int] -> Int -> [Expr]
solutions' ns n =
    [e | ns'   <- choices ns
       , (e,m) <- results ns'
       , m == n]

How fast is it now?

Example: solutions' [1,3,7,10,25,50] 765

One solution: 0.04 seconds

All solutions: 3.47 seconds

Around 10 times faster in both cases.

Can we do better?

• Many expressions will be essentially the same using simple arithmetic properties, such as:

x * y  =               y * x
x * 1  =               x

• Exploiting such properties would considerably reduce the search and solution spaces.

Exploiting properties

Strengthening the valid predicate to take account of commutativity and identity properties:

valid         :: Op → Int → Int → Bool
valid Add x y  = x ≤ y
valid Sub x y  = x > y
valid Mul x y  = x ≤ y && x ≠ 1 && y ≠ 1
valid Div x y  = x `mod` y == 0 && y ≠ 1

valid         :: Op -> Int -> Int -> Bool
valid Add x y  = x <= y
valid Sub x y  = x > y
valid Mul x y  = x <= y && x != 1 && y != 1
valid Div x y  = x `mod` y == 0 && y != 1

How fast is it now?

Example: solutions'' [1,3,7,10,25,50] 765

Valid: 250,000 expressions

Around 20 times less.

Solutions: 49 expressions

Around 16 times less.

One solution: 0.02 seconds

Around 2 times faster.

All solutions: 0.44 seconds

Around 7 times faster.

More generally, our program usually produces a solution to problems from the television show in an instant, and all solutions in under a second.

Lazy evaluation

Introduction

Up to now, we have not looked in detail at how Haskell expressions are evaluated.

In fact they are evaluated using a simple technique that, among other things:

1.  Avoids doing unnecessary evaluation

2.  Allows programs to be more modular

3.  Allows us to program with infinite lists

The evaluation technique is called lazy evaluation, and Haskell is a lazy functional language.

Evaluating expressions

Basically, expressions are evaluated or reduced by successively applying definitions until no further simplification is possible.

For example, given the definition: square n = n * n

The expression square(3 + 4) can be evaluated using the following sequence of reductions:

Evaluating expressions

square n = n * n

square (3 + 4)
= square 7
= 7 * 7
= 49

However, this is not the only possible reduction sequence.

Another is the following:

square (3 + 4)
= (3 + 4) * (3 + 4)
= 7 * (3 + 4)
= 7 * 7
= 49

Now we have applied square before doing the addition, but the final result is the same.

FACT

In Haskell, two different (but terminating) ways of evaluating the same expression will always give the same final result.

Reduction strategies

At each stage during evaluation of an expression, there may be many possible subexpressions that can be reduced by applying a definition.

There are two common strategies for deciding which redex (reducible subexpression) to choose:

1. Innermost reduction: An innermost redex is always reduced
2. Outermost reduction: An outermost redex is always reduced

How do the two strategies compare … ?

Termination

Given the definition: loop = tail loop

Let’s evaluate the expression fst (1, loop) using these two reduction strategies.

Innermost reduction

fst (1, loop)
= fst (1, tail loop)
= fst (1, tail (tail loop))
= ...

This strategy does not terminate.

Outermost reduction

fst (1, loop)
= 1

This strategy gives a result in one step.

Facts

• Outermost reduction may give a result when innermost reduction fails to terminate.
• For a given expression if there exists any reduction sequence that terminates, then outermost reduction also terminates, with the same result.

Number of reductions

Innermost

square (3 + 4)
= square 7
= 7 * 7
= 49

Outermost

square (3 + 4)
= (3 + 4) * (3 + 4)
= 7 * (3 + 4)
= 7 * 7
= 49

The outermost version is inefficient: the subexpression 3 + 4 is duplicated when square is reduced, and so must be reduced twice.

Fact Outermost reduction may require more steps than innermost reduction.

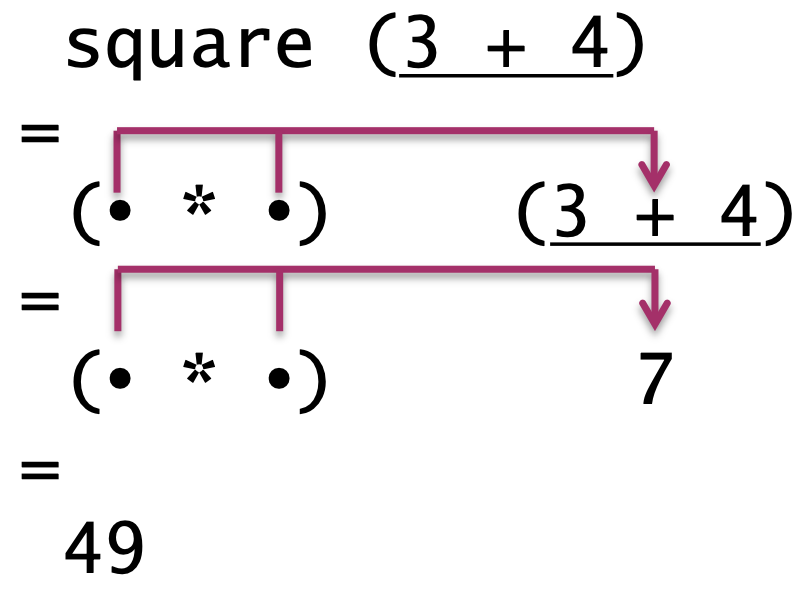

The problem can be solved by using pointers to indicate sharing of expressions during evaluation, as shown in Figure 3.

⊕
Figure 3. Square uses pointers to the expression 3 + 4, evaluates the expression to 7, and then multiplies the result.

This gives a new reduction strategy:

Lazy evaluation = Outermost reduction + sharing

Facts

• Never requires more steps than innermost reduction
• Haskell uses lazy evaluation

Infinite lists

In addition to the termination advantages, using lazy evaluation allows us to program with infinite lists of values!

Consider the recursive definition:

ones :: [Int]
ones = 1 : ones

Unfolding the recursion a few times gives:

ones = 1 : ones
     = 1 : 1 : ones
     = 1 : 1 : 1 : ones

That is, ones is the infinite list of 1’s.

Now consider evaluating the expression

head ones

using innermost reduction and lazy evaluation.

Innermost reduction

head ones = head (1 : ones)
          = head (1 : 1 : ones)
          = head (1 : 1 : 1 : ones)
          = ...

In this case, evaluation does not terminate.

Lazy evaluation

head ones = head (1 : ones)
          = 1

In this case, evaluation gives the result 1.

That is, using lazy evaluation only the first value in the infinite list ones is actually produced, since this is all that is required to evaluate the expression head ones as a whole.

Lazy evaluation

In general we have the slogan:

Using lazy evaluation, expressions are only evaluated as much as required to produce the final result.

We see now that

ones = 1 : ones

really only defines a potentially infinite list that is only evaluated as much as required by the context in which it is used.

Modular programming

We can generate finite lists by taking elements from infinite lists.

> take 5 ones
[1,1,1,1,1]
> take 5 [1..]
[1,2,3,4,5]

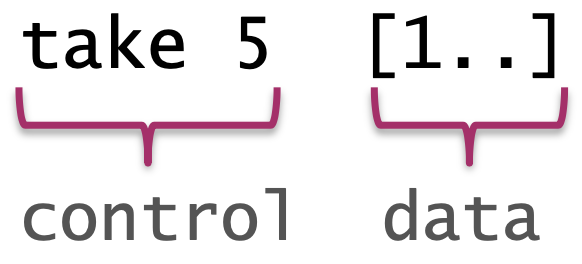

Lazy evaluation allows us to make programs more modular, by separating control from data, as shown in Figure 4.

⊕
Figure 4. Using lazy evaluation, the data is only evaluated as much as required by the control part.

Example: generating primes

A simple procedure for generating the infinite list of prime numbers is as follows:

1. Write down the list 2, 3, 4, … ;
2. Mark the first value p in the list as prime;
3. Delete all multiples of p from the list;
4. Return to step 2.

Example: generating primes

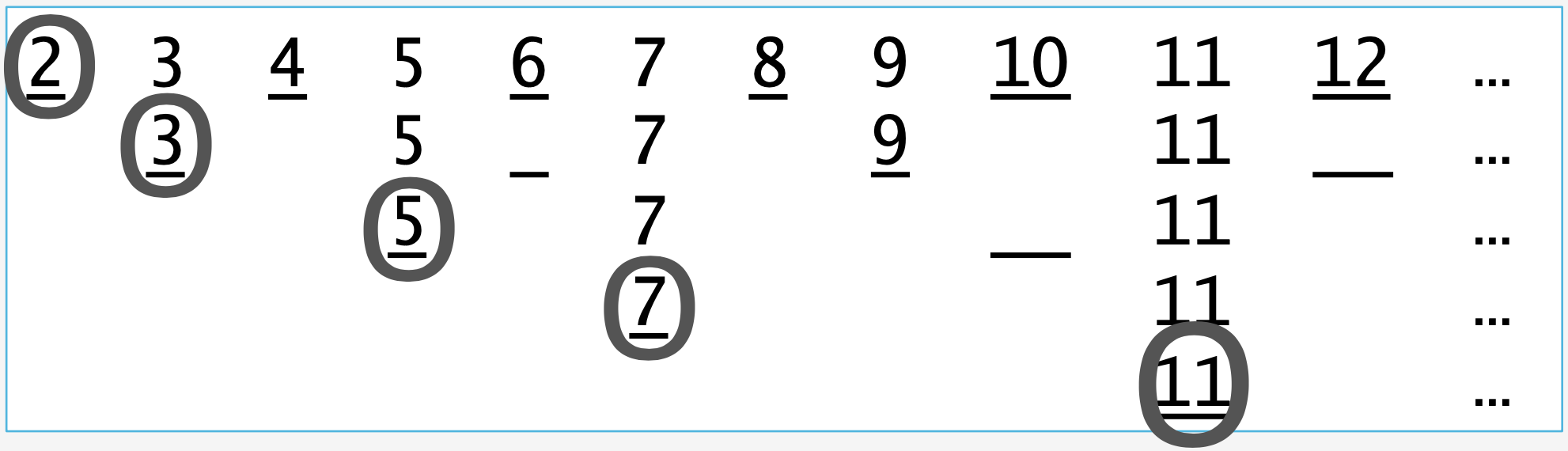

The first few steps are shown in Figure 5.

⊕
Figure 5. The procedure known as the “seive of Eratosthenes,” after the Greek mathematician who first described it, can be used to identify prime numbers.

It can be translated directly into Haskell:

primes :: [Int]
primes = seive [2..]

seive :: [Int] -> [Int]
seive (p:xs) = p : seive [x | x <- xs, x `mod` p /= 0]

and executed as follows:

> primes
[2,3,5,7,11,13,17,19,23,29,31,37,41,43,47,53,59,61,...

primes :: [Int]
primes = seive [2..]

seive :: [Int] -> [Int]
seive (p:xs) = p : seive [x | x <- xs, x `mod` p /= 0]

primes

By freeing the generation of primes from the constraint of finiteness, we obtain a modular definition on which different boundary conditions can be imposed in different situations:

Selecting the first 10 primes:

> take 10 primes
[2,3,5,7,11,13,17,19,23,29]

Selecting the primes less than 15:

> takeWhile (<15) primes
[2,3,5,7,11,13]

Lazy evaluation is powerful programming tool!

take 10 primes

takeWhile (<15) primes

Fun exercises

Define a program

fibs :: [Integer]

that generates the infinite Fibonacci sequence [0, 1, 1, 2, 3, 5, 8, 13, 21, 34, ... using the following simple procedure:

1. The first two numbers are 0 and 1;
2. The next is the sum of the previous two;
3. Return to step 2.

Fun exercises

Define a program

fib :: Int -> Integer

that calculates the nth Fibonacci number.

Back to course home
